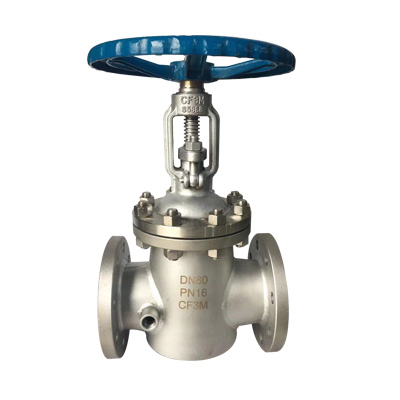

BZ41Y-16RL-DN80不锈钢保温闸阀
BZ41Y-16RL-DN80不锈钢保温闸阀
应用规范 Application Norm
1、设计制造按API STD.600
Design Manafacfure According to API STD.600
2、结构长度按ANSI B16.10
Face to Face According to ANSI B16.10
3、法兰型式及尺寸：150/300/600Lb按ANSI B16.5 JIS 10K、20K按JIS B2212~2214
150/300/600Lb End Flange Dimension According to ANSI B16.10 Accoring to JIS B2212-B2214
4、阀门检查和试验按API STD.598
Valve Check and Test According to API 598
主要零件材料 Main parts and materials
|
零件名称 ltem
|
CF8系列
|
CF3系列
|
CF8M系列
|
CF3M系列
|
321系列
|
|
阀体/阀盖Body/Cap
|
CF8
|
CF3
|
CF8M
|
CF3M
|
0Cr18Ni10Ti
|
|
闸板Wedge
|
CF8
|
CF3
|
CF8M
|
CF3M
|
0Cr18Ni10Ti
|
|
阀杆Stem
|
F304
|
F304L
|
F316
|
F316L
|
321
|
|
填料Packing
|
PTFE编织Weaving
|
PTFE编织Weaving
|
PTFE编织Weaving
|
PTFE编织Weaving
|
PTFE编织Weaving
|
|
垫片Gasket
|
PTFE+304
|
PTFE+304L
|
PTFE+316
|
PTFE+316L
|
PTFE+321
|
|
压盖Gland flange
|
CF8
|
CF3
|
CF8M
|
CF3M
|
0Cr18Ni10Ti
|
|
填料压环Stuffing ring
|
304
|
304L
|
316
|
316L
|
0Cr18Ni10Ti
|
|
螺栓Bolt
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
|
螺母Nut
|
A194-8M
|
A194-8M
|
A194-8M
|
A194-8M
|
A194-8M
|
150Lb、10K主要连接尺寸及重量 Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
18"
|
20"
|
24"
|
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
|
|
L
|
mm
|
108
|
117
|
127
|
140
|
165
|
178
|
190
|
203
|
229
|
254
|
267
|
292
|
330
|
356
|
381
|
406
|
432
|
457
|
508
|
|
H
|
mm
|
188
|
202
|
225
|
252
|
277
|
323
|
347
|
383
|
457
|
632
|
762
|
895
|
895
|
1080
|
1295
|
1435
|
1626
|
1829
|
2175
|
|
D
|
mm
|
90
|
90
|
100
|
100
|
140
|
200
|
250
|
250
|
300
|
300
|
350
|
350
|
400
|
500
|
600
|
600
|
650
|
650
|
700
|
|
重量
wight |
kg
|
-
|
-
|
-
|
-
|
-
|
23
|
32
|
40
|
63
|
66
|
108
|
171
|
263
|
346
|
488
|
621
|
814
|
992
|
1492
|
300Lb、20K主要连接尺寸及重量 Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
18"
|
20"
|
24"
|
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
|
|
L
|
mm
|
140
|
152
|
165
|
178
|
190
|
216
|
241
|
286
|
305
|
381
|
403
|
419
|
457
|
502
|
762
|
838
|
914
|
991
|
1143
|
|
H
|
mm
|
155
|
160
|
186
|
216
|
250
|
330
|
368
|
394
|
473
|
660
|
711
|
813
|
1003
|
1137
|
1489
|
1581
|
2017
|
2228
|
2650
|
|
D
|
mm
|
100
|
100
|
125
|
160
|
160
|
250
|
250
|
300
|
300
|
350
|
350
|
400
|
500
|
600
|
600
|
650
|
838
|
889
|
1092
|
|
重量
wight |
kg
|
3.7
|
4.3
|
7.1
|
-
|
13.1
|
30
|
36
|
61
|
77
|
106
|
153
|
286
|
412
|
576
|
886
|
1175
|
1301
|
1672
|
2562
|
400Lb主要连接尺寸及重量 Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
|
DN
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
|
|
L
|
mm
|
292
|
330
|
356
|
432
|
457
|
495
|
597
|
673
|
764
|
826
|
902
|
|
H
|
mm
|
368
|
394
|
473
|
712
|
686
|
750
|
876
|
1041
|
1181
|
1588
|
1803
|
|
D
|
mm
|
250
|
300
|
300
|
356
|
400
|
400
|
500
|
600
|
650
|
700
|
700
|
|
重量
wight |
kg
|
35
|
47
|
65
|
145
|
153
|
250
|
390
|
535
|
886
|
960
|
1424
|
600Lb主要连接尺寸及重量 Main connection dimensions and weights
|
尺寸
(mm) Dimensions |
inch
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
2-1/2"
|
3"
|
4"
|
5"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
18"
|
20"
|
24"
|
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
|
|
L
|
mm
|
165
|
190
|
216
|
229
|
241
|
292
|
330
|
356
|
432
|
508
|
559
|
660
|
787
|
838
|
889
|
991
|
1092
|
1194
|
1397
|
|
H
|
mm
|
155
|
160
|
186
|
216
|
250
|
510
|
554
|
559
|
712
|
826
|
995
|
1157
|
1373
|
1603
|
1930
|
2032
|
2286
|
2591
|
3124
|
|
D
|
mm
|
100
|
100
|
125
|
160
|
160
|
254
|
254
|
305
|
356
|
406
|
508
|
610
|
686
|
686
|
762
|
889
|
889
|
1118
|
1118
|
|
重量
wight |
kg
|
3.8
|
5.4
|
7.6
|
10
|
15
|
44
|
60
|
80
|
145
|
236
|
309
|
522
|
779
|
1108
|
1503
|
1939
|
2733
|
3214
|
4177
|
